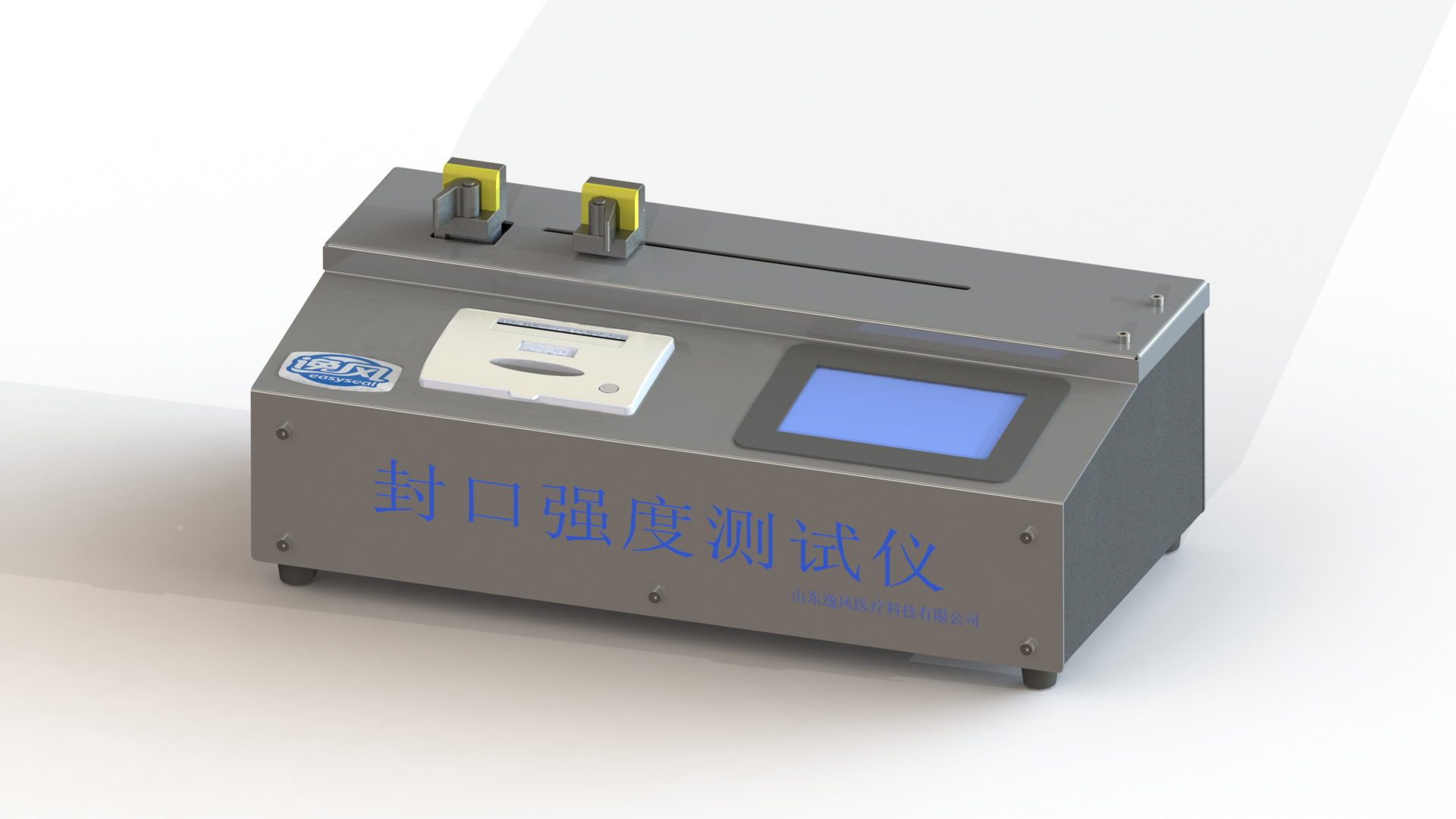

EF600 plastic film sealing strength tester
This product can measure the strength of the joint between the combination bag and the plastic film packaging bag. It can test the heat sealing and peeling strength of a variety of plastics on site in accordance with the requirements of the specification, and print the test records through the built-in micro printer or Connect the tester to a computer, and store or print out the test parameters through a dedicated recording program to meet the need for tracing the sealing effect of the batch number.
Test principle:
The sample is clamped between the two chucks of the fixture, and the two chucks move relative to each other. The force sensor located on the fixed chuck collects the force value changes during the test to calculate the heat of the sample. Performance indicators such as sealing strength and peeling strength.
Scope of application:
This equipment can be used to test the heat-sealing strength performance and peel strength performance of plastic film, composite film, paper-plastic bag, aluminum foil bag and other materials;
Main features:
1. Microcomputer control, 5.0 inch touch screen control, humanized Chinese and English operation interface;
2. The quick chuck design can realize the quick installation and disassembly of the test sample, and the operation is simple.
3. Real-time dynamic curve display of tension, with maximum and average test functions;
4. Intelligent speed control, stable stretching speed;
5. Equipped with micro thermal printer and USB computer interface to realize dual output of test parameters.
technical parameter:
Peeling rate: 200-450mm/min adjustable
Measuring range: 0-200 N (optional configuration 50N 100N)
Accuracy: Level 1
Resolution: 0.01N
Sample width: 15mm
Stretching stroke: 180mm
Working environment: temperature 23±2℃ relative humidity: 50±5%RH
AC power supply: 220V±10% 50Hz
Work rate: 35 W
Weight: 7Kg
Dimensions: 430×215×160 (length×width×height) mm
Printing method: thermal printing
Storage environment: temperature: 10～40℃;
Humidity: ≤90% (R.H);
Atmospheric pressure: 50KPa～106KPa
